MACHINERY
Ripple Mill

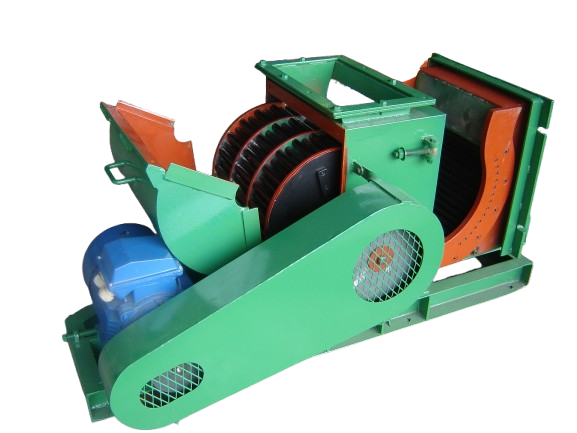

The MSB Ripple Mill is designed to deliver up to 98% cracking efficiency with lower maintenance costs and reduced downtime. Built with a robust body frame, high-strength rotor rods, and a drawer-type design, it ensures easy servicing and long-lasting operation, making it an essential part of palm oil mill processing.
More Info
Product Description
Drawer-type design allowing for easy maintenance, highly wear-resistant square rods contributing towards longer life span.
Patents & Certification
- Grand No: MY-146872-A
- Indonesia Patent Application No: P00201100145
Advantages
- Innovative Drawer-Type Design – Allows for easy access and fast maintenance.
- Highly Wear-Resistant Ripple Rods – Long-lasting and interchangeable rods reduce replacement costs.
- High Cracking Efficiency – Achieves up to 98% nut cracking for improved output.
- Robust & Reliable – Strong build for easy operation and minimal upkeep.
- Cost-Effective – Lower investment costs due to reduced power consumption and simple installation.
| Specification | |||
|---|---|---|---|
| Model | MSB 6 Ton Ripple Mill | MSB 9 Ton Ripple Mill | MSB 12 Ton Ripple Mill |
| Capacity | Approx 6 ton of nut per hr | Approx 9 ton of nut per hr | Approx 12 ton of nut per hr |
| Drive Unit | 11kW x 1450rpm | 15kW x 1450rpm | 22kW x 1450rpm |
| Body | Mild Steel Body c/s M.S Channel Frame | ||
| Pulley and Belt | Taper lock pulley c/w bush | ||
| Rotor Rod | Carbon steel rod c/w hardening HRC 50 ~ 55 | ||
