MACHINERY

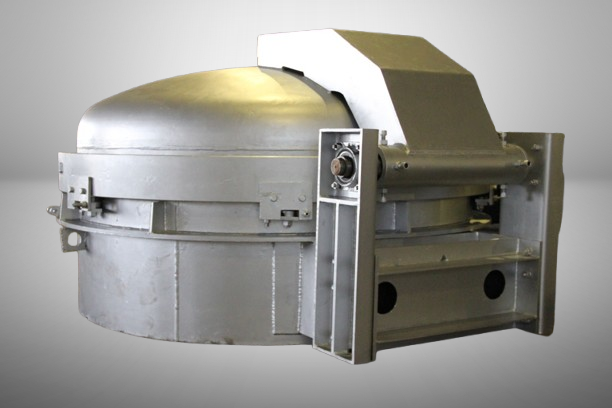

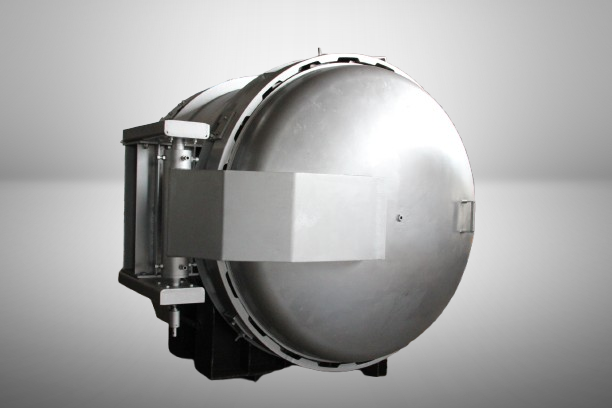

Clutch Door
Our MSB Clutch Doors are engineered for safety, reliability, and precision in high-pressure applications. Built from certified materials and thoroughly inspected, each unit undergoes post-weld heat treatment, radiographic testing, and hydrostatic testing to ensure the highest standards of quality. Approved by the Department of Occupational Safety and Health (DOSH) Malaysia, these doors deliver long-term durability and safe operation in demanding environments.
More InfoProduct Description
Engineered for safety and precision, our DOSH-approved MSB Clutch Doors provide reliable performance under high pressure and temperature conditions.
| Specification | |||
|---|---|---|---|
| Model | MSB 2100OD | MSB 2700OD | MSB 3200OD & custom make design |
| Material | A516 Grade 70 | BS4360-43A | JIS3101 SS400 |
| Max Working Pressure | 50 Psi | ||
| Max Operating Temperature | 150.C | ||
| Dish Head | 15mm Thick | ||
| Dish Liner | 4.5mm Thick Stainless Steel/Mild Steal Full / Half Liner | ||
| Locking Device | Rotating Ring Type | ||
| Locking Ring | A516 Grade 70 Boiler Plate | ||
| Locking Face & Groove Insert | 304 Stainless Steel | ||
| Rubber Seal | Oil & Heat Resistant Self-Energized Type | ||
| Safety Features | One Unit of Steam Release Stainless Steel Ball Valve and Locking Lever | ||
