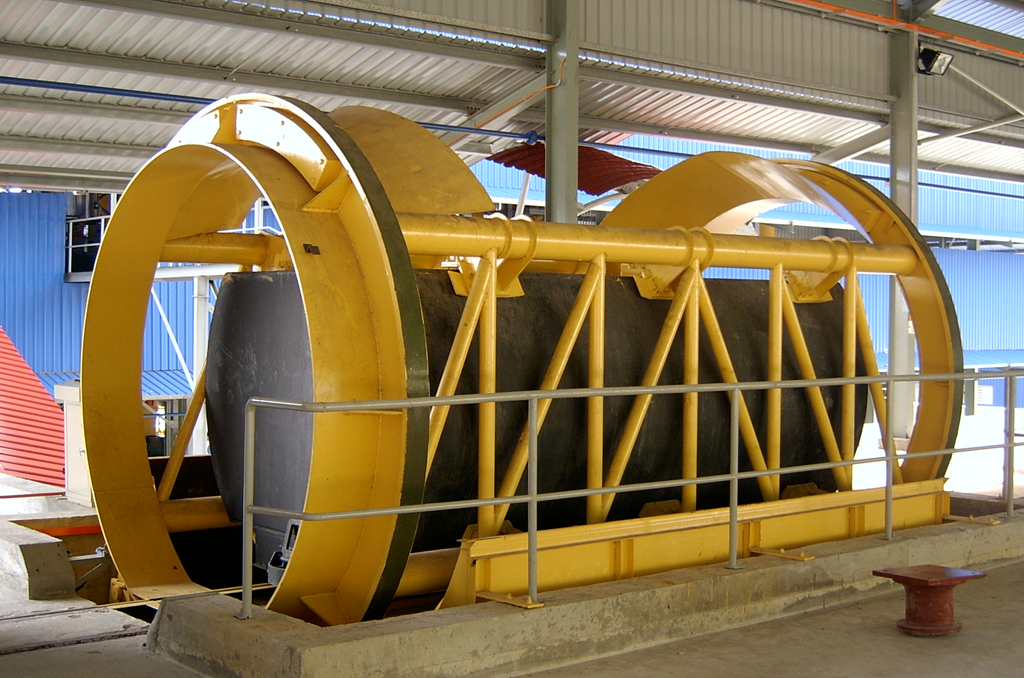

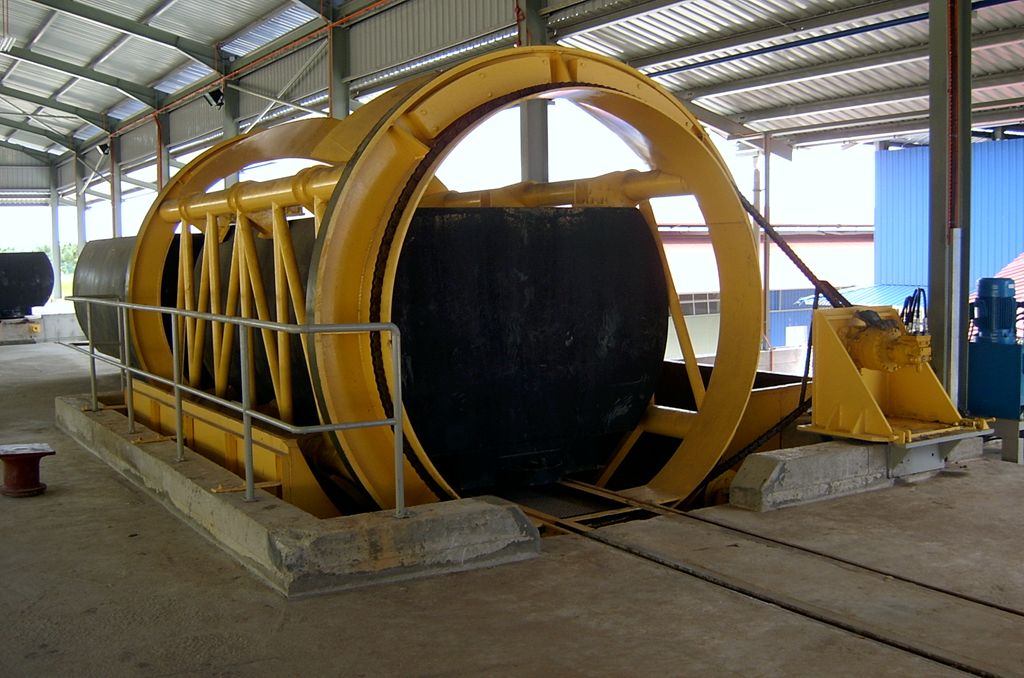

Cage Tipper
Our hydraulic-driven Cage Tippers are engineered for reliability and strength, designed to handle 5–16 tonne FFB cages with ease. Built with a robust frame, rail support, and precision tipping mechanism, they ensure smooth rotation and safe discharge of cages into the hopper. Compact, powerful, and easy to operate, they deliver consistent performance for palm oil mill operations.
More Info
Product Description
Our Cage Tipper is designed for efficient and reliable handling of Fresh Fruit Bunch (FFB) cages in palm oil mill operations. With a robust frame and hydraulic drive system, it delivers smooth 180° bi-directional rotation to discharge cages into hoppers safely and effectively. Built for heavy-duty use, it accommodates cage capacities ranging from 5 to 16 tonnes.
| Specification | |
|---|---|
| Tipper Speed | 1.5-2rpm |
| Construction | Frame, rail support beam, rail, tipper chute |
| Drive System | Hydraulic powerpack with hydraulic motor; output shaft fitted with duplex sprocket and transmission chain |
| Hydraulic System Includes | Hydraulic pump, oil tank, motor, tubing, lever control, relief valve, pressure gauges, pump strainer, check valve, etc. |
| Electric Motor | 11 kW / 4 Pole TEFC squirrel cage induction motor |
| Rotation | 180° bi-directional via hydraulic motor coupled to gearbox and chain system |
| Capacity | 5–16 tonne cages |
